SCREW PRESS SEPARATOR​

SCREW PRESS SEPARATOR​

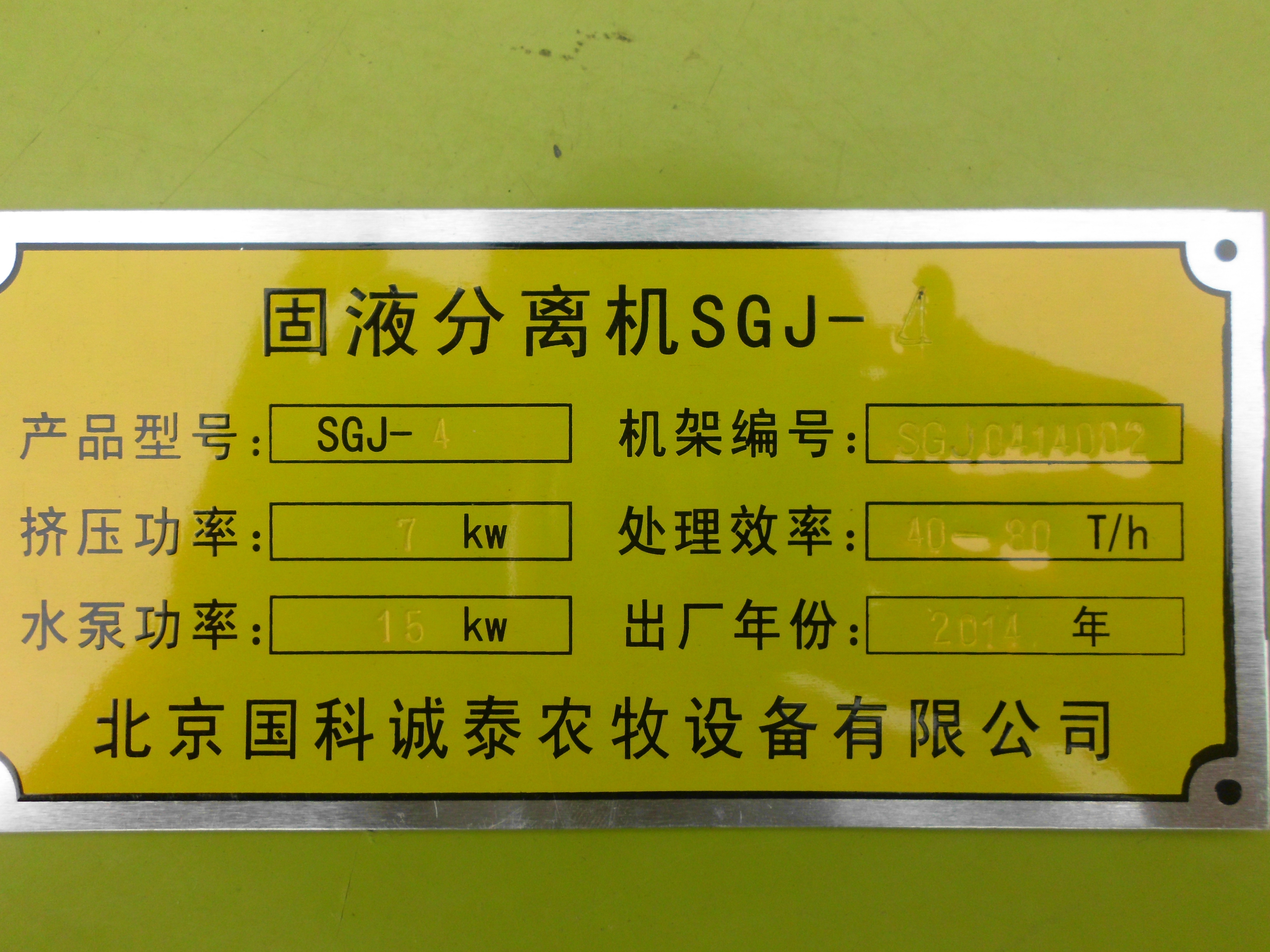

Seperator SGJ-4

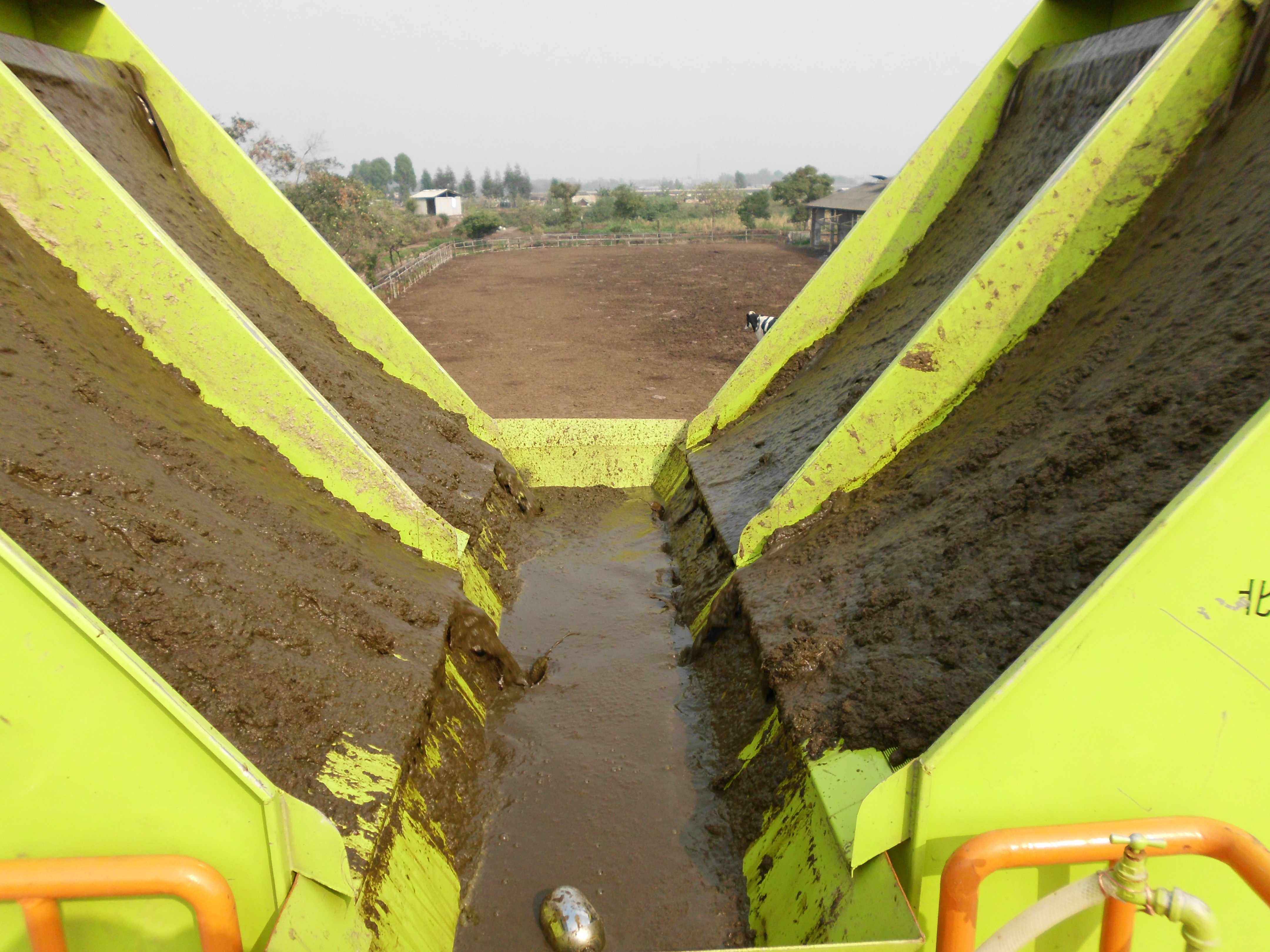

SLOPE SCREEN AND SCREW PRESS SEPARATOR

Content



1.     Stainless steel,0.5mm to 2.0mm screen gap, slope screen tanks are made of stainless steel, the slope angle can be adjusted to give a longer working life.

2.     Moisture content of dairy cattle manure pre-treated  by a submersible cutting pump:>94%

3.     Processing Capacity:40m3/per hour

4.     The manure is pressed outward through a stainless steel screen reducing solid output moisture to 65%-70%

5.     High strength and corrosion resistant screw conveyor extrusion auger. The front end of the auger is welded with wear-resistant material, reducing wear for long life.

6.     Helical screw  transports the manure along within a cylindrical wedge-wire screen.

7.     Moisture and humidity can be adjusted according to the different requirements of solid materials.

8.     The cycloidal gear reducer is a compact, high-ratio, and low backlash speed reduction device.

9.     Easy machine observation and cleaning

10.  The basic configuration includes motor protector, emergency stop button, voltmeter, ammeter, etc.

11.  Equipped with submersible sewage pumps. Manure pump is with the blades for cutting the fiber like cotton yarn, long grass to resist the blockage of the pump.

12.  Lift support of the manure pump allows easy access  for  maintainence and adjustment.

13.  Vibrating screen motor; reduces mesh blockage.




Processing Capacity (m³/hour)

40m³/hour

Body Material

Stainless steel

Screw Material

Stainless Steel

Length (m)

4.926

Width (m)

3.327

Height (m)

3.558

Weight (kg)

1550 Kg

Power Requirement (kW)

7.5
